Real surveys, corrected, fused and graded. Each model states its data, its numbers and its limits.
Hobart 3D city model

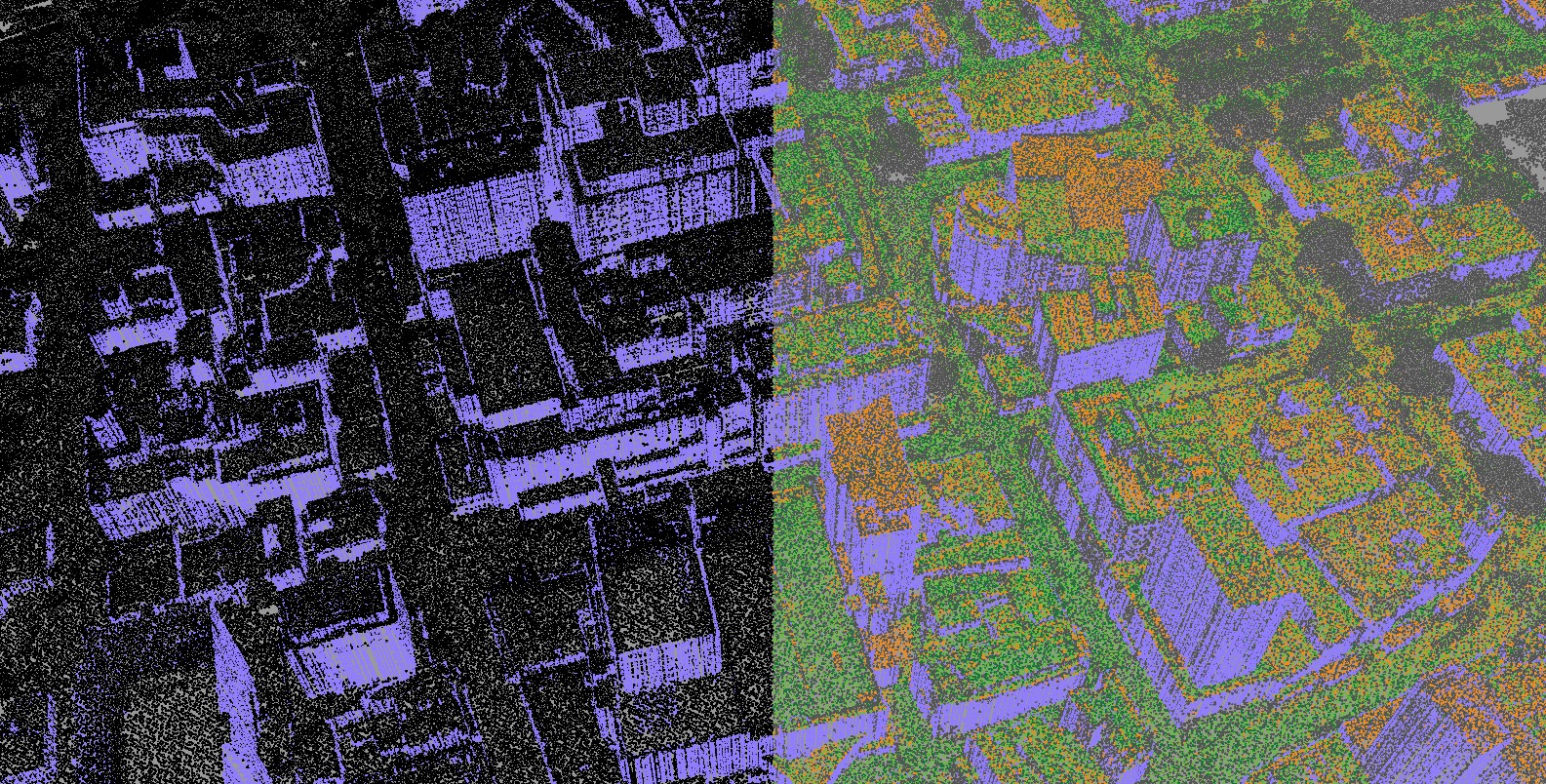

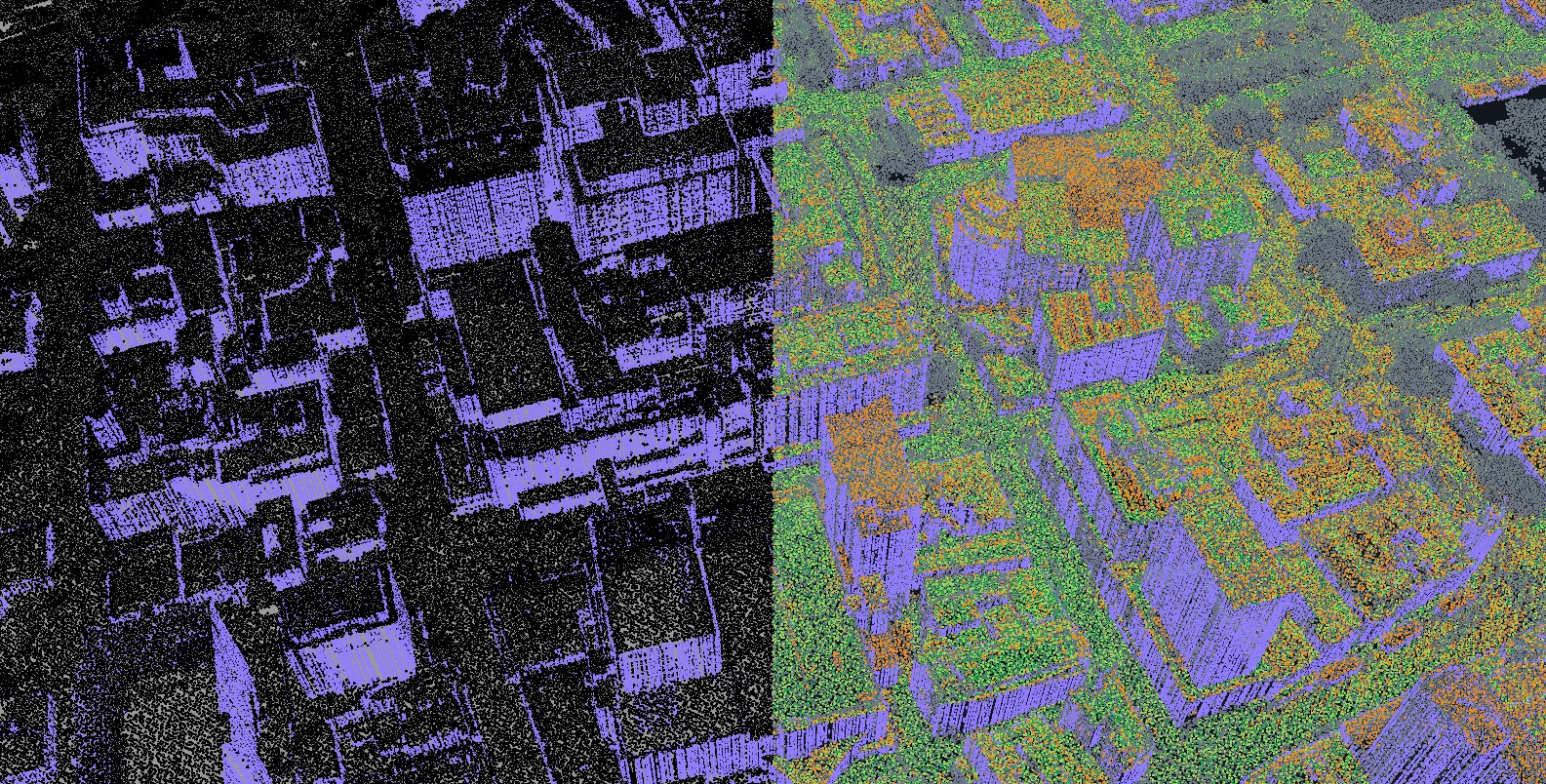

Three airborne surveys flown over 16 years, fused into one true-colour model of the city centre. Every point graded, every modelled wall flagged.
- Measured points, three surveys
- 348million
- Points where two or more aligned surveys agree within 15 cm
- 64.7million
- Modelled wall points, every one flagged
- 49.8million
Satsop plant study

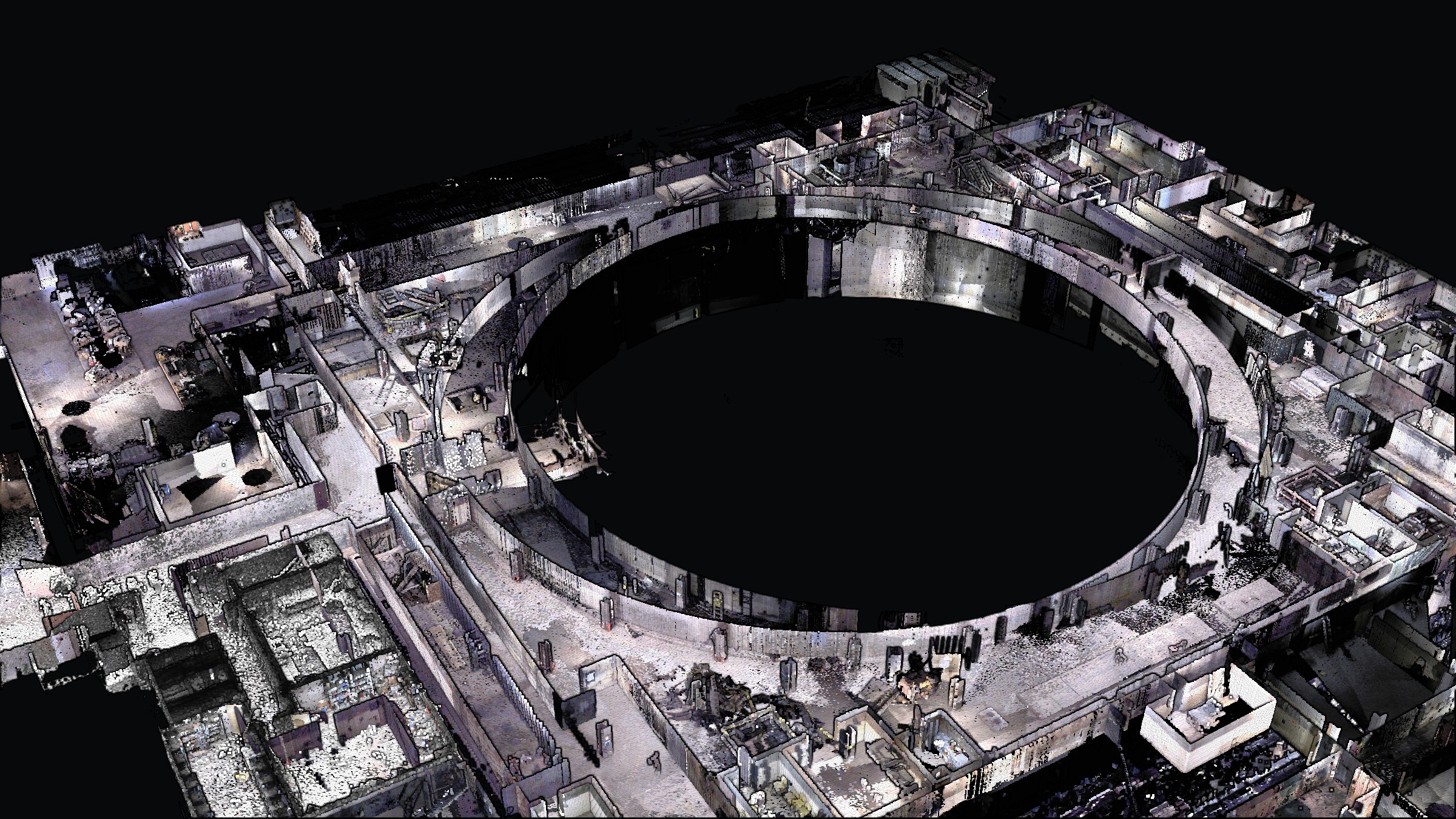

Inside an unfinished nuclear power plant: two separate survey campaigns, registered to each other and fused on a 2 cm grid into one model of rooms, stairs and the containment ring.
- Offset between the two campaigns as delivered, removed by registration
- 20cm
- Held-out median mismatch between the two campaigns after alignment
- 13.2mm
- Surface measured by both campaigns where the two agree within 3 cm
- 86%
El Teniente underground study

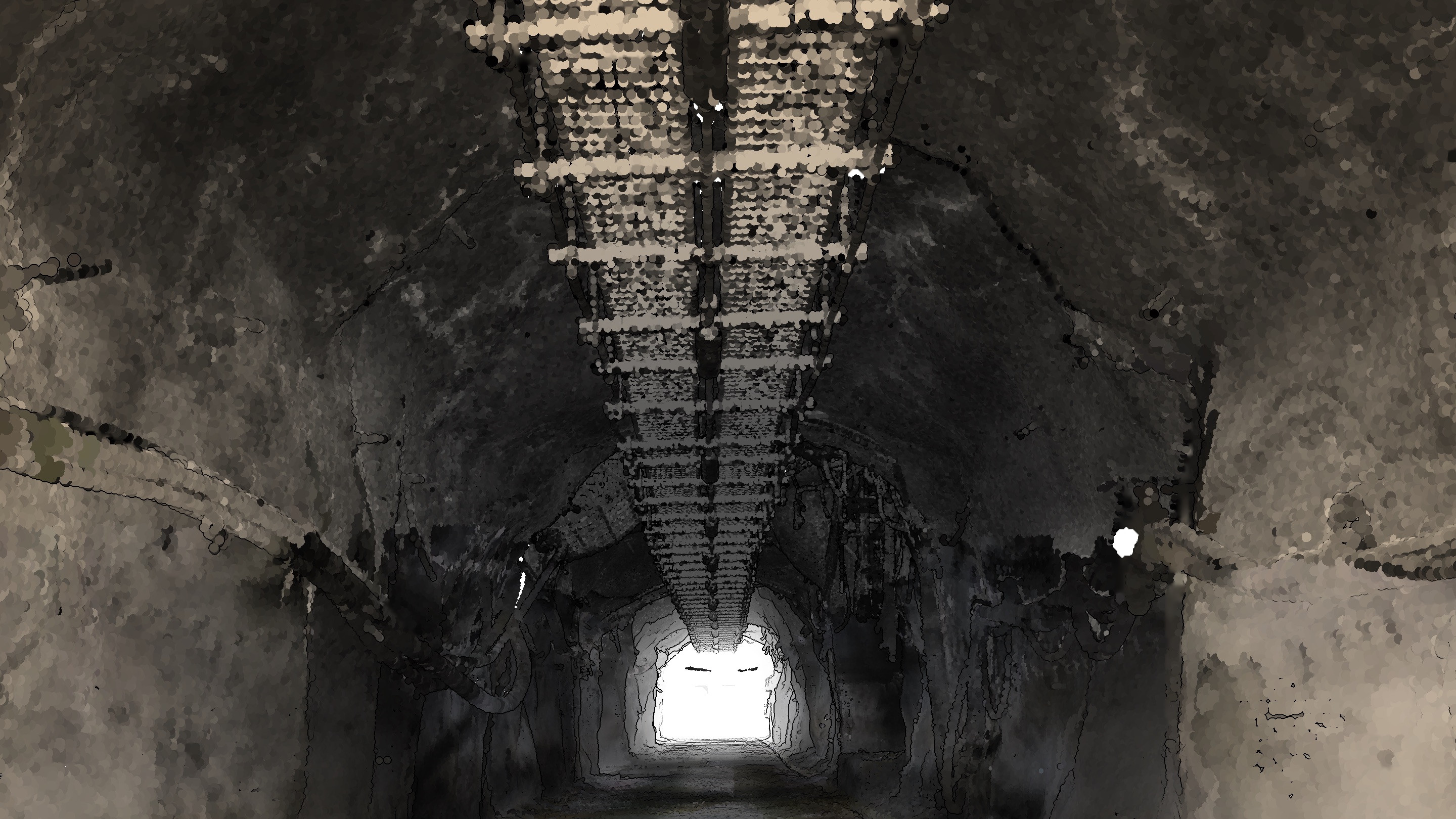

44 robot-captured laser scans, delivered as raw text: no GPS, no colour, nothing aligned. Registered to each other and fused into one model of two kilometres of production tunnels.
- Laser scans registered into one model, with no GPS
- 44
- Overlapping surface registered within 1 cm
- 98.7%
- Scan pairs fitted more closely than by the dataset's published poses; the other 25 as closely, within 1 mm
- 153of 178
Change detection study: Rosebery, Lake Mackenzie, Forcett–Dunalley

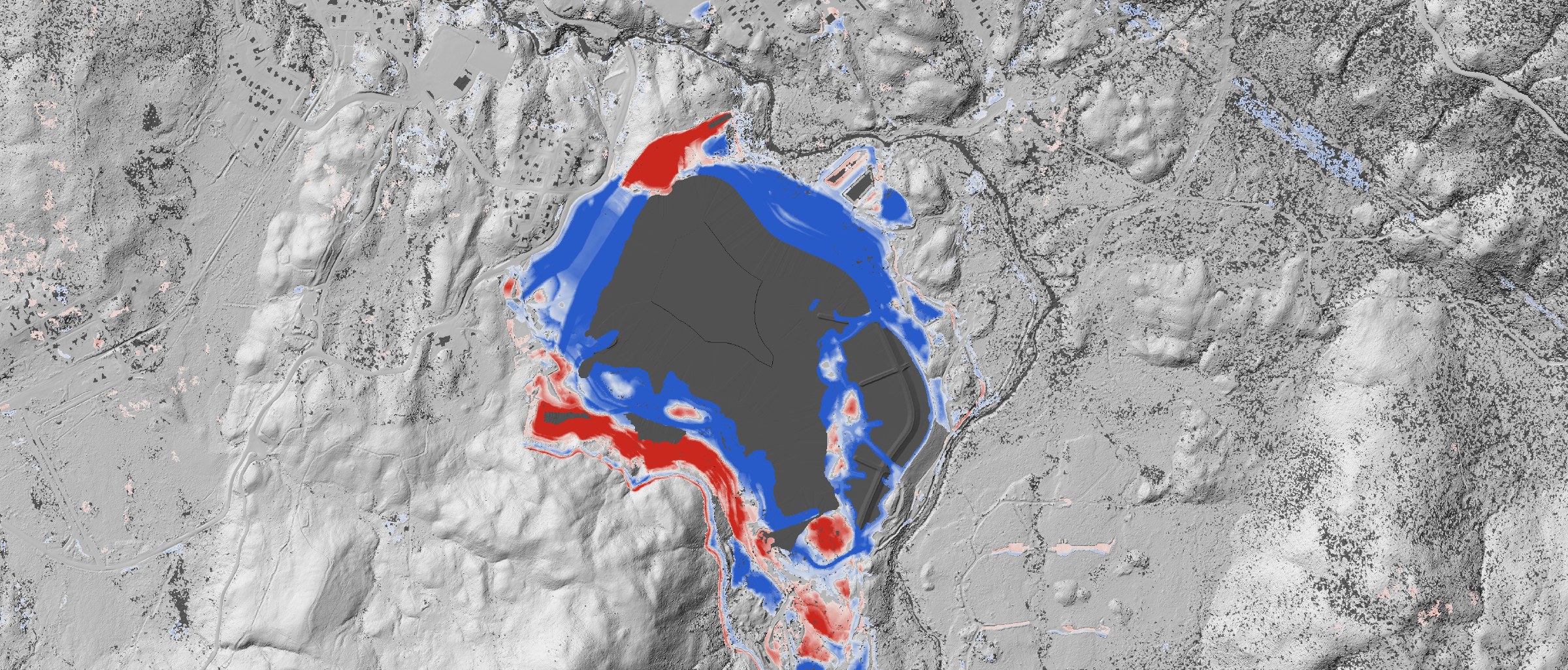

Eleven years of earthworks at a mine site and two bushfires, measured from repeat airborne LiDAR: every pair of surveys aligned on stable ground, and only change beyond the level of detection counted.
- Placed beyond the level of detection (95 %), Rosebery, 2015 to 2026 (0.59 million m³ removed)
- 1.56million m³
- Area where canopy cover fell beyond the level of detection (95 %): Lake Mackenzie, 2013 to 2016
- 10,695ha
- Area where canopy cover fell beyond the level of detection (95 %): Forcett–Dunalley, 2011 to 2013
- 1,915ha
The Satsop and El Teniente figures are registration agreement between scans, not absolute accuracy against control.
Showcase data
Showcase
datasets
Published survey data from Australia and abroad, processed and corrected by GroundMap and credited under each licence.
- Australia · Tasmania
Hobart, Tasmania
City centre, 3 surveys fused
LiveShowcase: GroundMap processing of public survey data. Not client work.
- Credit
- Hobart City 2023/24 LiDAR from theLIST © State of Tasmania. Licence: CC BY 3.0 AU.
Climate Futures Derwent 2008 LiDAR: The LiDAR Dataset was collected as part of the Climate Futures for Tasmania project; a project managed and delivered by the Antarctic Climate & Ecosystems Cooperative Research Centre. The dataset was funded primarily by the State Government of Tasmania through the State Emergency Service and the Commonwealth Natural Disaster Mitigation Program. Licence: ACE CRC licence (Australia wide; commercial use, adaptation and sub-licence).
Mount Wellington 2011 LiDAR, flown 20 to 28 January 2011, obtained via ELVIS (Geoscience Australia). Licence: No licence on record. - Source
- elevation.fsdf.org.au
- United States · Washington
Satsop plant, Washington
Industrial and indoor · 2 survey campaigns fused on a 2 cm grid
Industrial studyShowcase: GroundMap processing of public survey data. No affiliation with the site owner or the survey teams.
- Licence
- No licence on record
- Credit
- DARPA Subterranean Challenge (Urban Circuit, Satsop, Washington, February 2020) / US Army Research Laboratory
- Chile · O'Higgins Region
El Teniente mine, Chile
Underground study · 44 scans registered without GPS
Underground studyShowcase: GroundMap processing of public survey data. No affiliation with the mine operator or the dataset authors.
- Licence
- CC BY-NC-ND 3.0 CL
- Credit
- Chilean underground mine dataset, Advanced Mining Technology Center (AMTC), Universidad de Chile. Leung et al., The International Journal of Robotics Research 36(1), 2017, doi:10.1177/0278364916679497
- Source
- repositorio.uchile.cl
- Australia · Tasmania
Change detection study: Rosebery, Lake Mackenzie, Forcett–Dunalley
Repeat airborne LiDAR · a mine site and two bushfires
Change studyShowcase: GroundMap processing of public survey data. No affiliation with the operator of the Rosebery mine.
- Licence
- Per source, stated with each credit line
- Credit
- West Coast 2015 LiDAR from theLIST © State of Tasmania. Licence: CC BY 3.0 AU.
Rosebery 2026 LiDAR from theLIST © State of Tasmania. Licence: CC BY 3.0 AU.
North West 2013 LiDAR from theLIST © State of Tasmania. Licence: CC BY 3.0 AU.
Lake Mackenzie Road 2016 LiDAR from theLIST © State of Tasmania. Licence: CC BY 3.0 AU.
South East 2011 LiDAR from theLIST © State of Tasmania. Licence: CC BY 3.0 AU.
Greater Hobart 2013 LiDAR, obtained via ELVIS (Geoscience Australia). Licence: No licence on record.
Fire History (Tasmania Fire Service) from theLIST © State of Tasmania. Licence: CC BY 3.0 AU.
TASVEG 5.0 (Department of Natural Resources and Environment Tasmania) from theLIST © State of Tasmania. Licence: CC BY 3.0 AU.
Aerial imagery © State of Tasmania (Land Tasmania): Rosebery flights of December 2015 and February 2026. Licence: CC BY-NC-ND 3.0 AU. - Source
- elevation.fsdf.org.au
